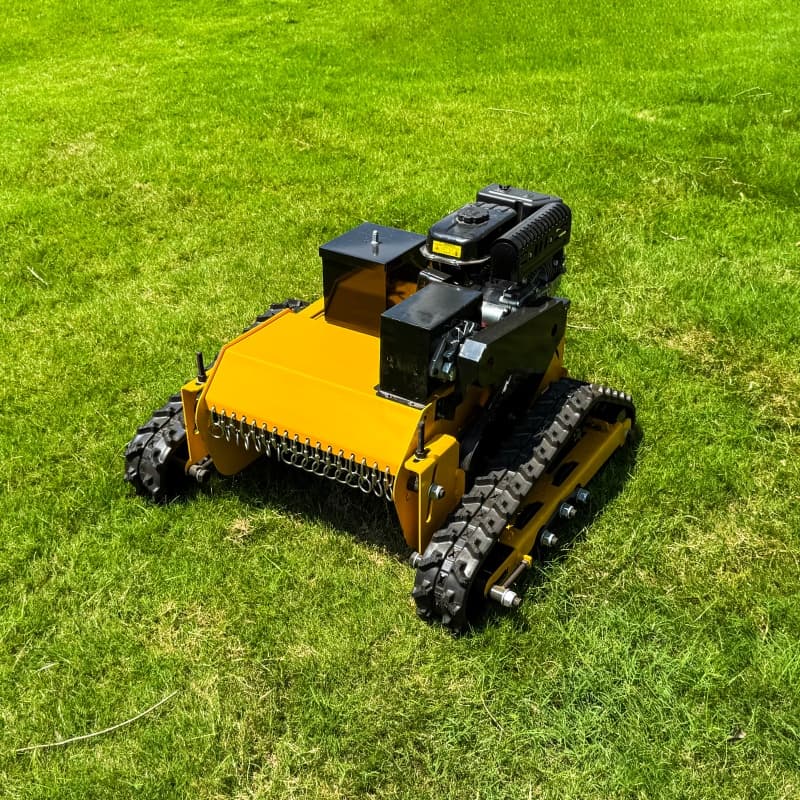

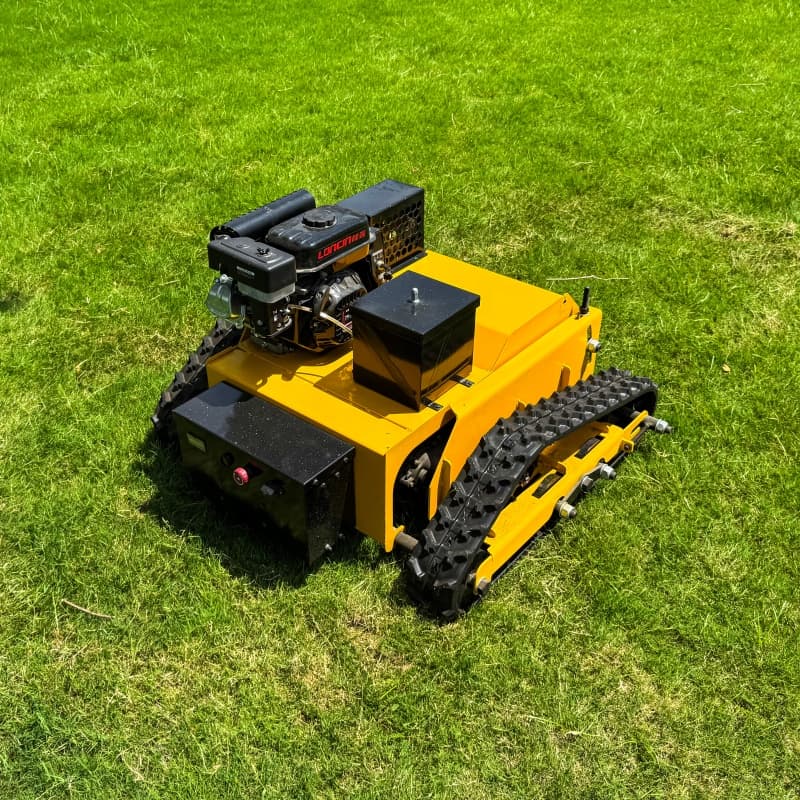

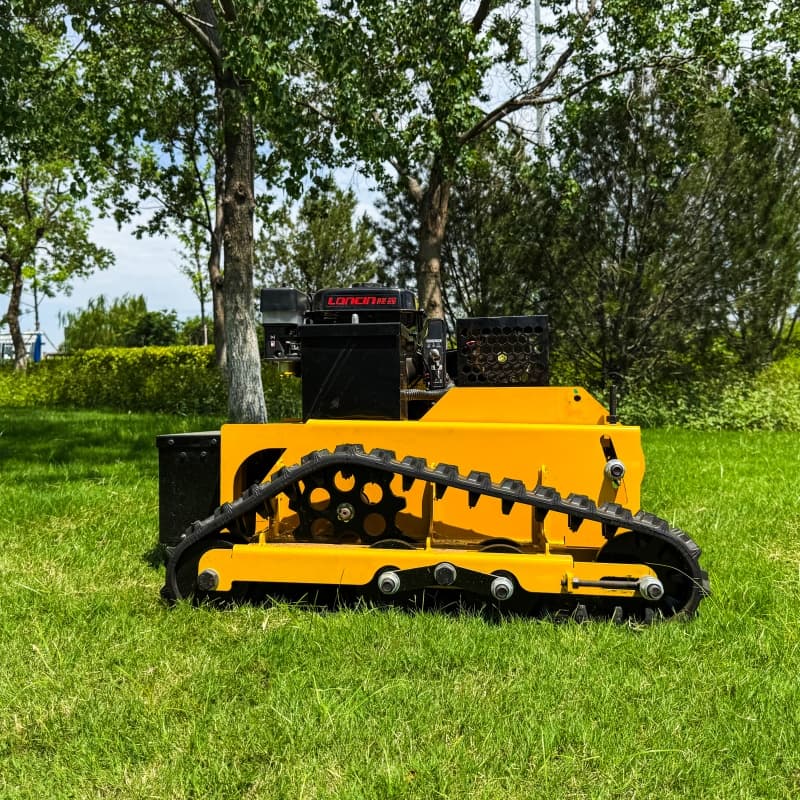

Remote Fail Mower
Power and Performance: Equipped with a Yanmar 178F engine and a diesel-electric hybrid system, it has strong power and energy efficiency, with a working efficiency of 2000㎡/h. It is equipped with a manganese steel blade system, including 32 double-edged manganese steel blades, with a speed of 3600 RPM, increasing cutting efficiency by 40%.
Control and Safety: Features a Human-Machine Separation System, supporting remote control within 100 meters, with quick response to ensure safety. It has a manual/remote hydraulic lift system for flexible and convenient operation.
Terrain Adaptation: Uses 12cm widened reinforced tracks, with a maximum climbing angle of ≤45°, and can adapt to complex terrains such as muddy ground and slopes.
Economy: With a diesel-electric hybrid system, saving 30% energy. The durable blades reduce consumable costs.
Certification and Customization: Certified by Euro 5, with reliable quality, and supports appearance customization.
Powered by Yanmar 178F & diesel-electric hybrid tech, this Flail Mower delivers 2000㎡/h efficiency with 32 dual-edged manganese steel blades (3600RPM, 40% more cutting power).
100m remote control ensures safe, flexible operation. 12cm reinforced tracks conquer ≤45° slopes & muddy grounds.
EPA/Euro 5 certified, fuel-efficient (4L for 6hrs, 30% energy save), and customizable in look.
Your all-terrain solution for orchards, slopes, and beyond—get this Remote Control Flail Mower for sale today!
Product Details
Parameters
Parameter | Specification |
Machine Size | 1100 × 1060 × 630 mm |
Machine Weight | 198 kg |
Packaging Size | 1160 × 1090 × 770 mm |
Packaging Weight | 224 kg |
Mowing Width | 550 mm |
Cutting Height | 8-180 mm |
Walking Motor | 600W × 2 |
Mowing Motor | 3000W |
Starting Method | Electric Start |
Power Type | Hybrid Power (Gasoline + Electric) |
Working Slope | 40° |
Driving Speed | 4 km/h |
Remote Control Distance | 800 m |
Maximum Rotation Speed | 3600 RPM |
Hydraulic Deck Lift Range | 20-180mm |
Track Width | 1200mm |
Number of Blades | 32 pieces/set |
Battery Capacity | 12 Ah |
Fuel Tank Capacity | 3 L |
Product Application
Packaging and Shipping
For Suppliers
We offer attractive profit margins and 1–3 years of after-sales service on all our products. Each unit is thoroughly tested before leaving the factory to ensure top quality. Additionally, we provide free local promotion in your country and full support for customized products to meet your needs. Our 24/7 online customer service is always available to assist you.
The DY-500J, particularly in its Remote Control Flail Mower configuration, allows operators to manage hazardous slopes or difficult terrain from a safe distance, further expanding its safe application range. It represents the pinnacle of gas-powered flail mower technology for commercial use.
What is the recommended maintenance schedule for the DY-500J to ensure optimal longevity?
A: We recommend following a strict routine maintenance schedule. This includes daily checks of blade condition and track tension, engine oil changes every 100 operational hours, and greasing of all bearings and pivot points every 50 hours. An annual full service, including driveline inspection and hydraulic system checks, is advised for machines in continuous commercial use. Detailed manuals are provided.
